Description
1. The outstanding feature of this product is high safety and no noise pollution. Due to the limitation of the size of the motor, it cannot generate, 9000W as advertised by other businesses.
2. This is especially suitable for residential areas, because the noise generated by wind is less than 20 decibels. It is recommended to install on a higher roof. There are also horizontal operation and round blade shape, so that it will not be like a horizontal axis wind turbine in operation, which poses a safety hazard to the safety of humans and animals.
3. This product without includes tower pole, Please contact us if you need to purchase by email or leave a message.
Description
1. Silent design.
2. VAWTs are not affected by the direction of the wind, which is useful in areas where
the wind changes direction frequently and quickly.
3. Free Energy, Better able to harvest turbulent air flow found around buildings and other structures
Ideal for both rural and urban applications, including rooftop installations.
4. Convenient Simple to Install and Maintain
Application
Parameter
|
Vertical Wind Generator Data |
||
|
Power |
Rated power |
400W |
|
Maximum power |
410W |
|
|
Rated voltage |
12V |
|
|
SKU |
5D-400-12V |
|
|

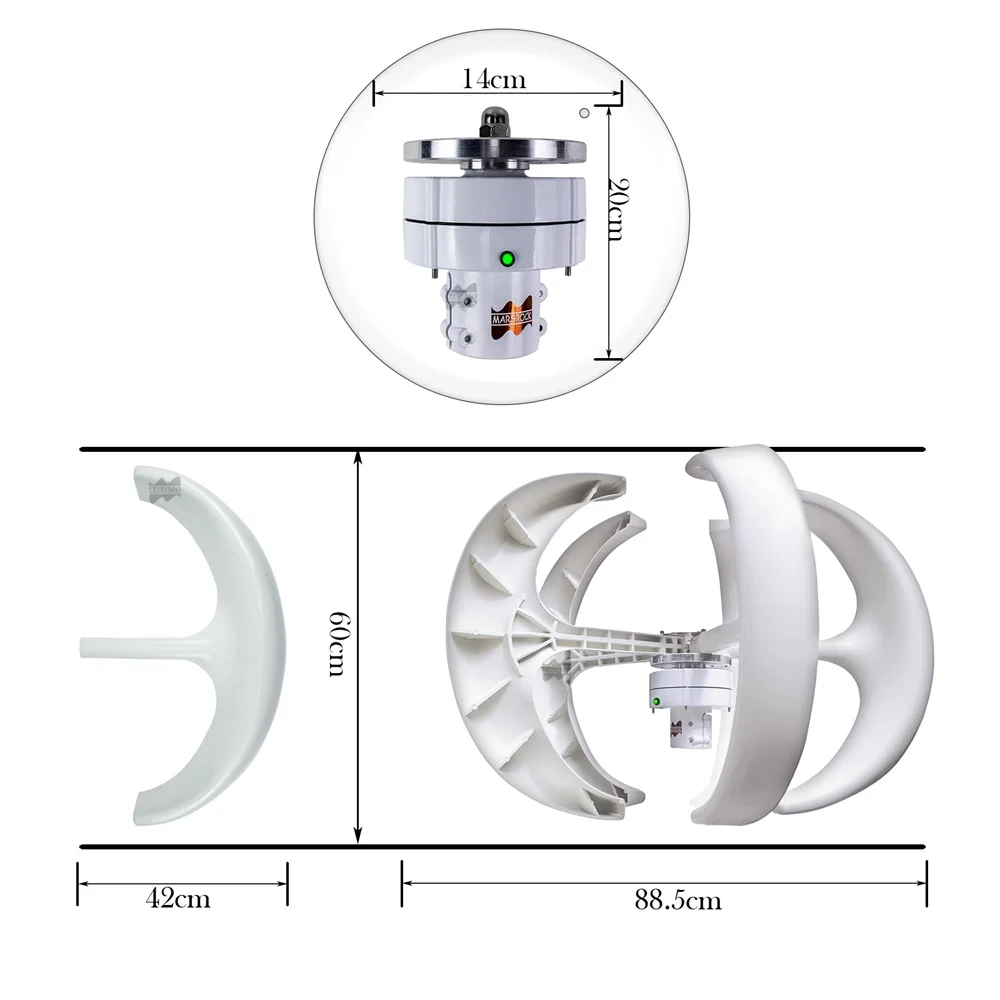

Blades |
Blades Length |
60 cm/23.62 inch |
|
Wheel Diameter |
88.5 cm/34.85 inch |
|
|
Blades material |
High-strength nano-fibre glass fibre |
|
|
Optional colors |
Red(default)/Black/Blue/White/Green/Orange/Yellow/mixed colors |
|
|
Shape |
Round |
|
|
Blades QTY |
5 PCS |
|
|
Wind |
Start-up |
1.5 m/s |
|
3.4mph |
||
|
Rated speed |
12 m/s |
|
|
27mph |
||
|
Survival speed |
45 m/s |
|
|
100.7mph |
||
|
Generator |
Type |
3 phase permanent magnet synchronous(NdFeB) AC generator |
|
Start Torque |
0.1 N*m |
|
|
Rotation speed |
900 RPM |
|
|
10. Fixing method |
hoop (default), flange (optional) |
|
|
Case |
Die-casting aluminum |
|
|

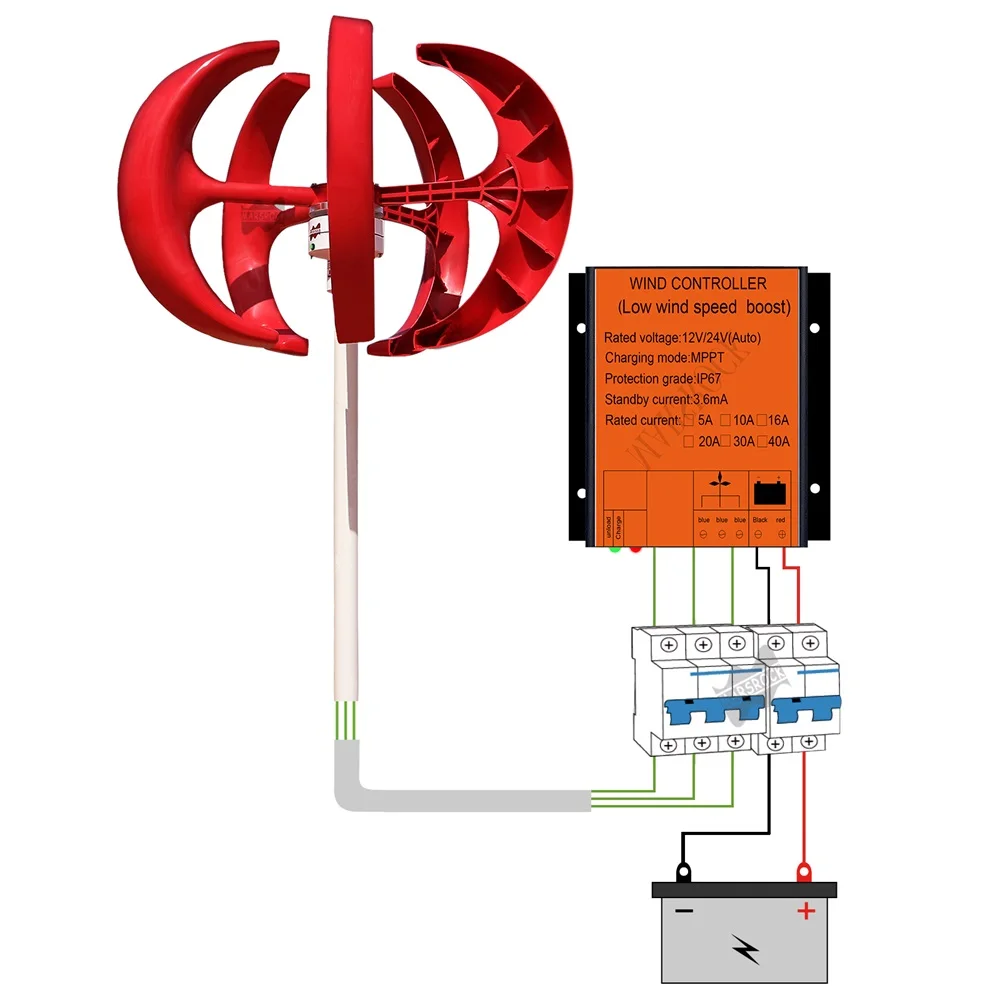

Control system |
Electromagnet |
|
|
Speed regulation |
Automatically adjust windward direction |
|
|
Operation |
-40 °C- + 80 °C |
|
|
Connector |
Hoop (default), Flange to connect with tower pole |
|
|
Design life |
20 Years |
|
|
Suggest |
Cables |
Copper 3 core wind AC cable, waterproof and UV resistant |
|

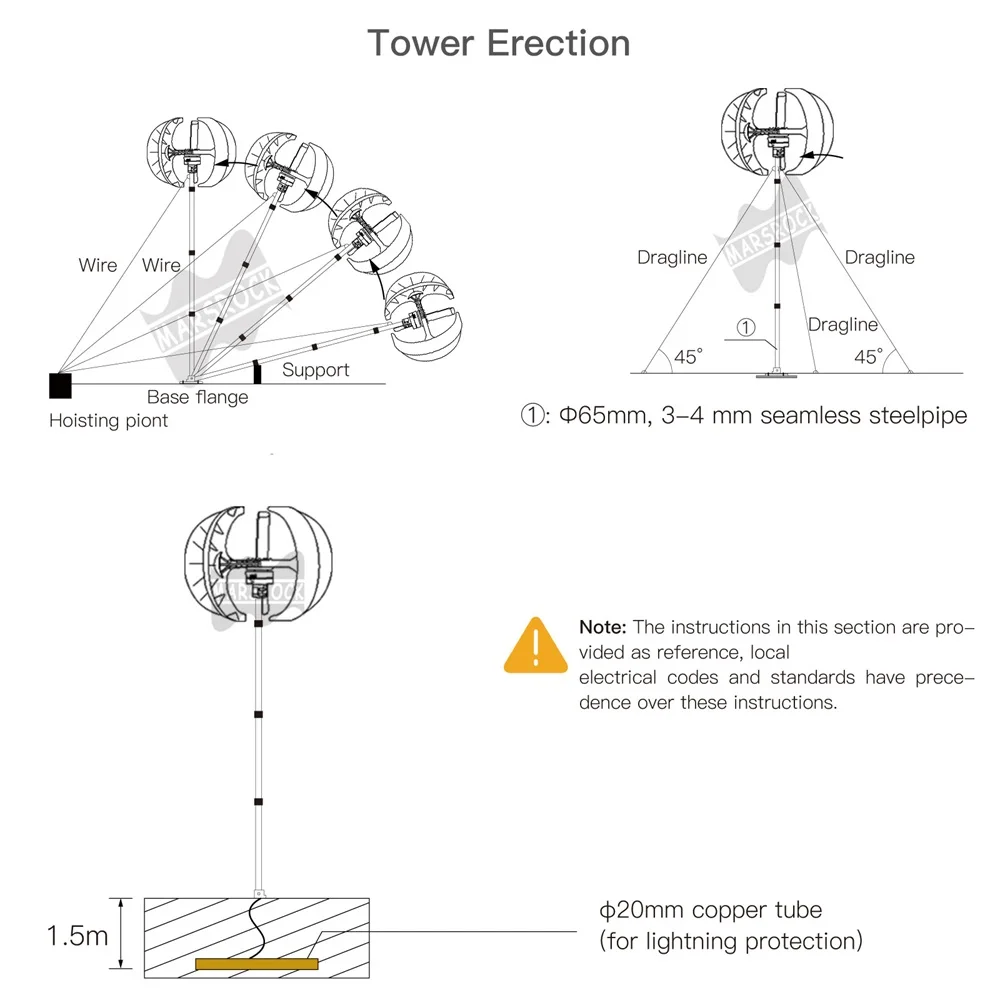

Tower Pole |
6 meter high with Steel cable |
|
|
Others |
Approved |
CE, ROHS, FCC, ISO, BIWEI |
